Bell PROCUT Oscillating Saw Blades
PROCUT oscillating saw blades are made for large-bone orthopaedic surgery, designed to give the straight, accurate, clean cut surfaces needed for proper implant seating. Choose from four tooth designs, 0.90–1.27 mm thickness, 13–25.4 mm width and 90 mm cutting length (100 mm in selected 22 mm Bell-hub blades), in Bell Surgical, Stryker, Linvatec and Synthes/Zimmer hub fittings.
Elite Pharma is the exclusive authorised territory distributor of Bell Surgical for Telangana and Andhra Pradesh. Buy, demo and service through our team.
Key specifications
- Blade type
- Oscillating
- Tooth designs
- Staggered · Wave · Aggressive · Flat ground
- Thickness
- 0.90 / 1.20 / 1.27 mm
- Width
- 13.0 / 19.0 / 22.0 / 25.4 mm
- Cutting length
- 90 mm; 100 mm (22 mm, Bell hub)
- Wave design
- 19 mm width, 1.20 / 1.27 mm
Source: Bell Surgical product literature (bellsurgical.com and Bell brochures). Confirm the configuration with your quotation.
Sizes, hubs & order codes
Thickness × width × cutting length (mm), with the catalogue order code for each hub. “—” = not listed for that hub.
| Design | Size (mm) | Bell hub | Stryker hub | Linvatec hub | Synthes / Zimmer hub |
|---|---|---|---|---|---|
| Staggered | 0.90 × 25.4 × 90 | — | 102.00 | 302.00 | 402.00 |
| 0.90 × 22.0 × 90 | 202.00 | 122.00 | 322.00 | 422.00 | |
| 0.90 × 19.0 × 90 | 209.00 | 190.00 | 309.00 | 409.00 | |
| 0.90 × 13.0 × 90 | 214.00 | 109.00 | 303.00 | 411.00 | |
| 1.20 × 25.4 × 90 | 220.00 | 120.00 | 320.00 | 420.00 | |
| 1.20 × 22.0 × 90 | 201.00 | 101.00 | 301.00 | 401.00 | |
| 1.20 × 22.0 × 100 | 225.00 | — | — | — | |
| 1.20 × 19.0 × 90 | 219.00 | 129.00 | 319.00 | 419.00 | |
| 1.20 × 13.0 × 90 | 212.00 | 113.00 | 323.00 | 412.00 | |
| 1.27 × 25.4 × 90 | 230.00 | 125.00 | 325.00 | 425.00 | |
| 1.27 × 22.0 × 90 | 227.00 | — | — | — | |
| 1.27 × 22.0 × 100 | 224.00 | — | — | — | |
| 1.27 × 19.0 × 90 | 221.00 | 127.00 | 327.00 | 427.00 | |
| 1.27 × 13.0 × 90 | 217.00 | 117.00 | 317.00 | 417.00 | |
| Wave | 1.20 × 19.0 × 90 | 219.01 | 129.01 | 319.01 | 419.01 |
| 1.27 × 19.0 × 90 | 221.01 | 127.01 | 327.01 | 427.01 | |
| Aggressive | 0.90 × 25.4 × 90 | — | 102.02 | 302.02 | 402.02 |
| 0.90 × 19.0 × 90 | 209.02 | 190.02 | 309.02 | 409.02 | |
| 0.90 × 13.0 × 90 | 214.02 | 109.02 | 303.02 | 411.02 | |
| 1.20 × 25.4 × 90 | 220.02 | 120.02 | 320.02 | 420.02 | |
| 1.20 × 19.0 × 90 | 219.02 | 129.02 | 319.02 | 419.02 | |
| 1.20 × 13.0 × 90 | 212.02 | 113.02 | 323.03 | 412.02 | |
| 1.27 × 25.4 × 90 | 230.02 | 125.02 | 325.02 | 425.02 | |
| 1.27 × 19.0 × 90 | 221.02 | 127.00 | 327.02 | 427.02 | |
| 1.27 × 13.0 × 90 | 217.02 | 117.02 | 317.02 | 417.02 | |
| Flat ground | 0.90 × 25.4 × 90 | — | 102.03 | 302.03 | 402.03 |
| 0.90 × 22.0 × 90 | 202.03 | — | — | — | |
| 0.90 × 19.0 × 90 | 209.03 | 190.03 | 309.03 | 409.03 | |
| 0.90 × 13.0 × 90 | 214.03 | 109.03 | 303.03 | 411.03 | |
| 1.20 × 25.4 × 90 | 220.03 | 120.03 | 320.03 | 420.03 | |
| 1.20 × 22.0 × 90 | 201.03 | 101.03 | 301.03 | 401.03 | |
| 1.20 × 22.0 × 100 | 225.03 | — | — | — | |
| 1.20 × 19.0 × 90 | 219.03 | 129.03 | 319.03 | 419.03 | |
| 1.20 × 13.0 × 90 | 212.03 | 113.03 | 323.03 | 412.03 | |
| 1.27 × 25.4 × 90 | 230.03 | 125.03 | 325.03 | 425.03 | |
| 1.27 × 22.0 × 90 | 227.03 | — | — | — | |
| 1.27 × 22.0 × 100 | 224.03 | — | — | — | |
| 1.27 × 19.0 × 90 | 221.03 | 127.03 | 327.03 | 427.03 | |
| 1.27 × 13.0 × 90 | 217.03 | 117.03 | 317.03 | 417.03 |
Order codes as printed in the Bell PROCUT ordering information. Hub compatibility and stock are confirmed with your quotation.
Features
- Staggered, Wave, Aggressive and Flat-ground tooth designs
- Thickness 0.90, 1.20 or 1.27 mm
- Width 13.0, 19.0, 22.0 or 25.4 mm
- Cutting length 90 mm (100 mm in selected Bell-hub sizes)
- Hubs: Bell Surgical, Stryker, Linvatec, Synthes/Zimmer
Typical applications
- Total knee replacement
- Total hip replacement
- Large-bone osteotomy
Why buy from Elite Pharma
- Free demo in your theatre (Telangana & Andhra Pradesh)
- Exclusive Bell Surgical distributor — supply, spares and service through Elite Pharma
- Backed by Bell Surgical’s 24×7 service team
- Buy-back schemes on request
- Care: wash and dry attachments after use, apply silicone oil, regular servicing
Quality & compliance
- Manufactured in India by Bell Corporation — ISO 13485:2016 certified, CDSCO certification (per Bell Surgical).
- Request model-specific specifications, certificates and dealership documents with your quote.
Product gallery

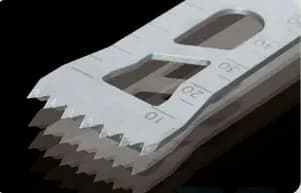

Product images courtesy Bell Surgical.
